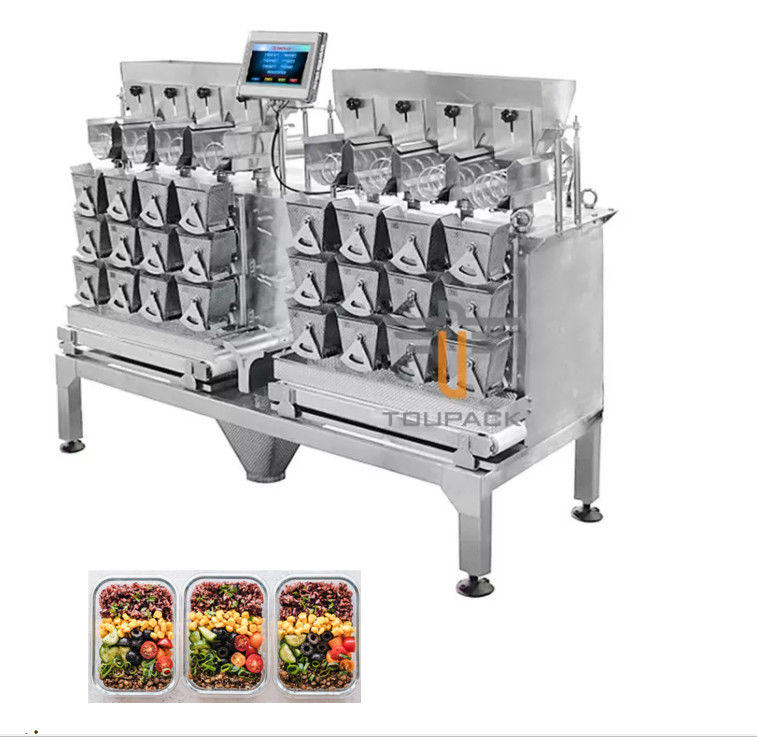

Name: Tri - Layer Hopper IP65 8 Head Linear Weighing Machine Sticky Food
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-1A-SZ-M1013-101
Price: 18,500.00 USD
Availability: InStock

Home > products > Multihead Weigher Packing Machine >

Tri - Layer Hopper IP65 8 Head Linear Weighing Machine Sticky Food

IP65 Linear Weighing Machine

8 Head Linear Weighing Machine

Place of Origin:

Zhongshan, Guangdong China

Brand Name:

TOUPACK

Certification:

CE, ISO

Model Number:

TY-1A-SZ-M1013-101

Request A Quote

Product Details

Warranty::

1 Year

Material::

Stainless Steel304/316

Voltage::

220/110V

Condition::

New

Automatic Grade::

Automatic

Core Components::

MCU/PLC

Payment & Shipping Terms

Minimum Order Quantity

Packaging Details

Wooden Case

Delivery Time

15-30 Working Days

Payment Terms

L/C, T/T

Supply Ability

50 Per Month

ISO 9001 1.5KW Multihead Weigher Packing Machine For Doypack Bag

Get Best Price

video

60WPM 5.0L Vegetable Salad Packaging Machine , Conveyor Packing Machine MultiHead

Get Best Price

video

SUS304 Auto Weighing Filling Machine For Granulated And Powdered Products

Get Best Price

video

Stainless Steel Industrial Use Multihead Weigher Combination Weighing Machine M14L1.6

Get Best Price

Contact Now

Product Description

4 / 8 Head High Speed Linear Weighing Machine Sticky food

Sticky Food Pickled Vegetable 1/2/4/8/10/14 head Linear Weigher

Application:

Applicable for fast weighing of sticky or crispy products, such as kimchi, chocolate, biscuit, meat loaf, ribs, etc.

Main Function & Features:

1. Tri-layer hopper design to effectively save production space.

2. “Scraping” mechanical design to effectively solve the problem of weighing sticky and oily products, like spicy small fish, spicy beef jerky and dried spicy beancurd, etc.

3. Screwing hopper doors to ensure product discharge without any blockage.

4. Screwing feeding system to ensure smooth discharge.

5. Product collection in final belt conveyor to bring faster and more effective conveying.

6. Both hoppers and feeding chutes are dismountable for easy cleaning and maintenance.

7. IP 65 dust and water proof design.

Specifications:

Single Head:

Model	TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper)	2000g
Accuracy	x (0.5)
Min. Scale Interval	0.1g
Max. Speed	15 WPM
Hopper Volume	0.8L
Control System	PLC
HMI	7’’ color touch screen
Power Supply	AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension	1,000(L)1,600W)1,985H)mm
Package weight	110kg

Double Heads:

Model	TY-A-M92-3
Max. Weighing (one hopper)	1000g
Accuracy	x (0.5)
Max. Scale Interval	0.1g
Max. Speed	10-15 WPM
Hopper Volume	0.8L
Control System	MCU
HMI	7’’ color touch screen
Power Supply	AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension	1,000(L)×6000(W)×985(H)mm
Package weight	110kg

Four Heads:

Model	TY-A-M92-3
Max. Weighing (one hopper)	300g
Accuracy	x (0.5)
Max. Scale Interval	0.1g
Max. Speed	85 WPM
Hopper Volume	0.5L
Control System	MCU
HMI	7’’ color touch screen
Power Supply	AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension	1,000(L)×6000(W)×985(H)mm
Package weight	110kg

Solution Units:

1. Z-type bucket conveyor
2. 1/2/4/8/10/14 head Linear Weigher
3. Working platform
4. VFFS
5. Finished product conveyor
6. Auto check weigher
7. Metal detector
