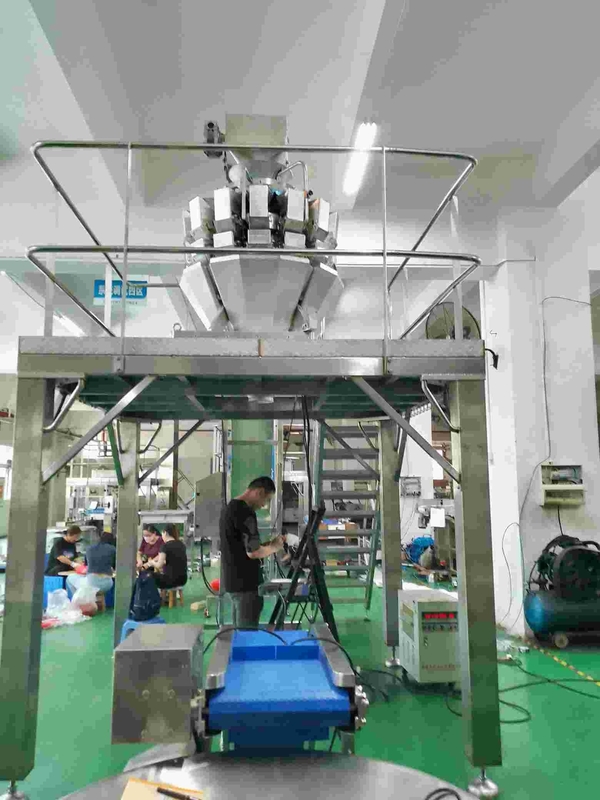

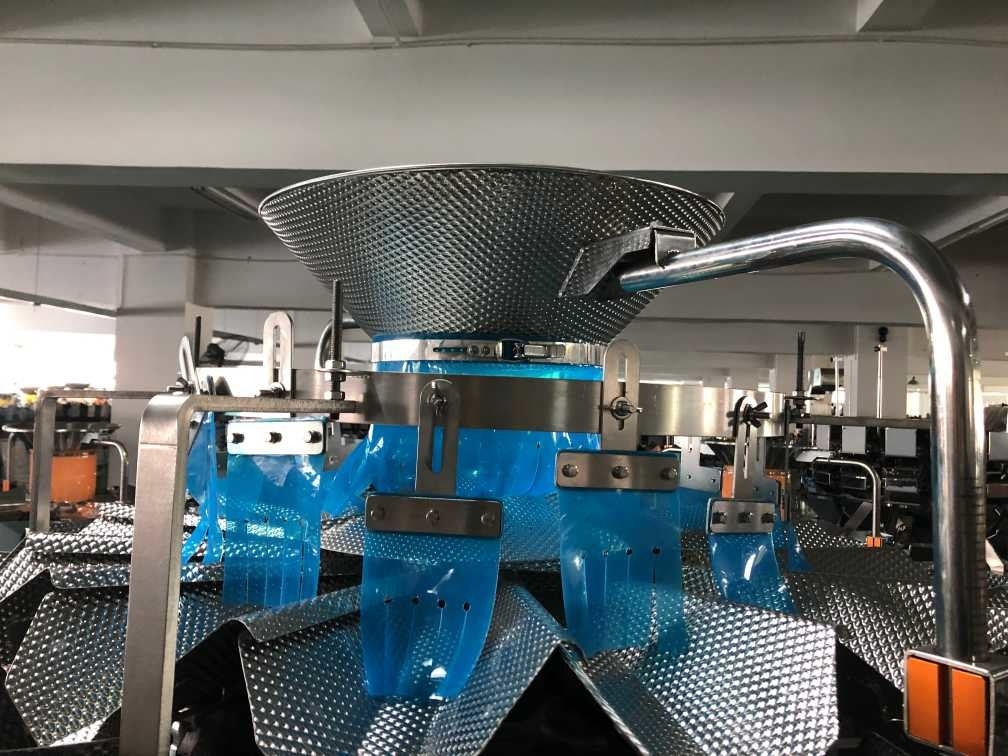

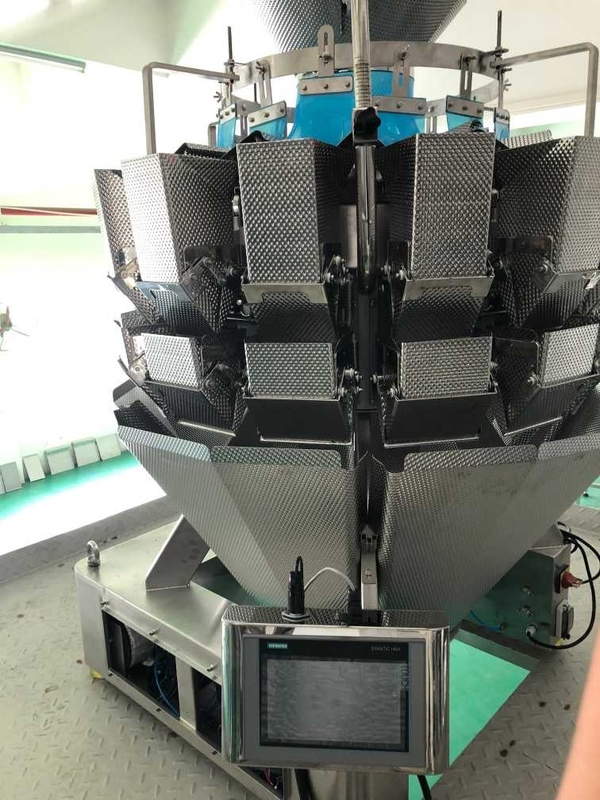

PLC control SS304 14 heads combination weigher for cooked chicken dice
Quick details:
1. modular design
2. higher accuracy
3. reliable main structure
4. anti-sticky option available
Specifications:
| Model |
TY-ZHY14P-16-01-11 |
| Weighing range |
20-1500g |
| Accuracy |
x (0.5) |
| Min. scale interval |
0.1g |
| Max. weighing speed |
120 p/M |
| Volume of weighing hopper |
1.6 L/ 2.5L |
| Control system |
PLC |
| HMI |
10'' touch screen |
| Power supply |
AC220V ±10% @50Hz/60Hz, 1.5KW |
| Packing dimension (L*W*H) |
1140 x 1140 x 1853mm |
| Gross weight |
500kgs |
FAQ:
1. How does a Multi-Head Weigher work?
A multi-head weigher–also sometimes known as a combination weigher or multi-head scale–is a high-speed, high accuracy weighing machine which that is commonly used in the food industry as well as other packaging applications.
Each machine contains multiple weighing heads, each with its own load cell, which is used in combination. Based on the target weight, the software of the scale chooses which scale buckets (when added together) combine to reach the desired weight.
2. What parts are included within a weighing and packaging system?
It depends on your needs. Feeding hopper, inclined conveyor, multi-head weigher, support platform, vertical form fill seal packing machine, take away conveyor, rotary collection tables.
(optional equipment: customized indexing conveyors, automatic weight-sorting machine, metal detecting machine, labeling machine etc)
3. How do I set up one of your machines?
Clients can set up the machines as per the TOUPACK instruction. Or, we send out one of our technicians to help with the installation and the setup of the programs needed for your products and containers, as well as training your employees on standard operations, preventive maintenance on site or online.
4. Can you ship to other countries?
Yes, we have served customers in 80+ countries and areas, providing installation, support, and ongoing training on our machines worldwide.
