Name: IP65 2500ml Hopper 14 Heads Weigher For Fresh Ingredient
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-ZHY142P25-01-11
Price: 18,500.00 USD
Availability: InStock

Home > products > Multihead Weigher Packing Machine >

IP65 2500ml Hopper 14 Heads Weigher For Fresh Ingredient

2500ml Hopper 14 Heads Weigher

14 Heads Weigher IP65

PLC 14 Heads Weigher

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE, ISO

Model Number:

TY-ZHY142P25-01-11

Request A Quote

IP65 2500ml Hopper 14 Heads Weigher For Fresh Ingredient

Product Details

Model:

TY-ZHY142P25-01-11

Material:

SUS 304

Weighing Range:

20-1500g

Min. Scale Interval:

0.1g

Control System:

MCU Or PLC

Power Supply:

AC220V ±10% @50Hz/60Hz, 1.5KW

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

wood crates

Delivery Time

30-35 days

Payment Terms

L/C, T/T

Supply Ability

50 sets per month

VFFS Vertical Packaging Machine Multihead Weigher Food Auto Form Fill Sealing

Get Best Price

120bag/Min High Accuracy Multihead Weigher Packing Machine For Cheese And Onion Hoops

Get Best Price

14 Head Multihead MCU/PLC Weigher Packing Machine For Weiging Fruits Oranges

Get Best Price

Stainless Steel 304 80P/M 20 Head Multi Function Weigher For Puffed Food

Get Best Price

Contact Now

Product Description

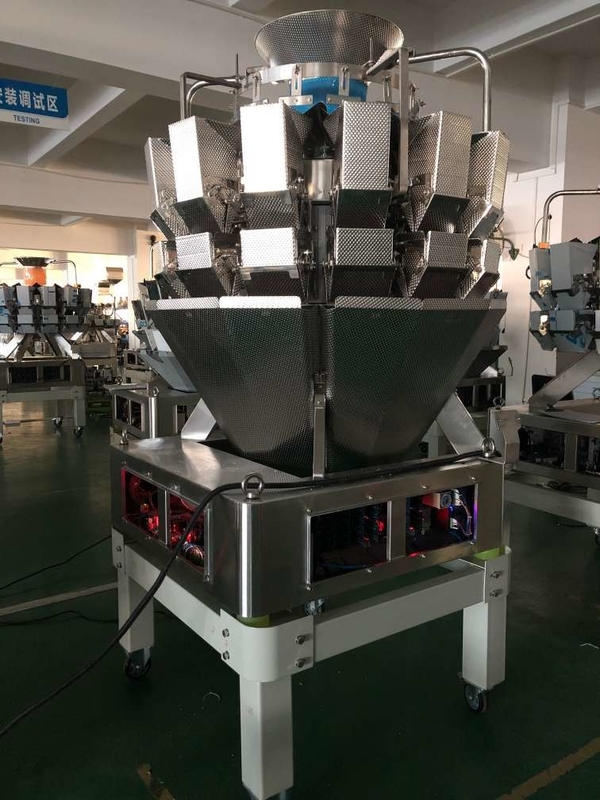

IP65 2500ml Hopper 14 Heads Weigher For Fresh Ingredient

Product Specifications

Model	TY-ZHY142P25-01-11
Material	SUS 304
Weighing range	20-1500g
Min. scale interval	0.1g
Control system	MCU or PLC
Power supply	AC220V ±10% @50Hz/60Hz, 1.5KW

Detailed Specifications

Accuracy	x (0.5)
Max. weighing speed	120 p/M
Volume of weighing hopper	1.6 L/ 2.5L
HMI	10'' touch screen
Packing dimension (LWH)	1140 x 1140 x 1853mm
Gross weight	500kgs

Key Features

High precision weighing
Upgrade modular design
Food-grade SUS 304 material
Easy installation and operation
IP65 waterproof rating
Reliable main structure

Frequently Asked Questions

How expensive are your packaging machines?

TOUPACK solutions are custom-designed to meet the needs of each customer and their products, so there's no simple answer in terms of cost. In most cases, the ROI timeline for a TOUPACK packaging system is generally less than a year (and often takes just a few months) based on our clients' feedback.

What certifications do your machines have?

Generally, our machines are CE certified, and we aim to follow best-in-class manufacturing processes across the board.

How does a Multi-Head Weigher work?

A multi-head weigher-also sometimes known as a combination weigher or multi-head scale-is a high-speed, high accuracy weighing machine which that is commonly used in the food industry as well as other packaging applications. Each machine contains multiple weighing heads, each with its own load cell, which is used in combination. Based on the target weight, the software of the scale chooses which scale buckets (when added together) combine to reach the desired weight.

What parts are included within a weighing and packaging system?

It depends on your needs. Feeding hopper, inclined conveyor, multi-head weigher, support platform, vertical form fill seal packing machine, take away conveyor, rotary collection tables.

Can you ship to other countries?

We have served customers in 80+ countries and areas, providing installation, support, and ongoing training on our machines worldwide.
