Name: SUS304 Multihead Weigher Packing Machine With 2.5L Hoppers
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-ZHY102P16-01-11
Price: 18,500.00 USD
Availability: InStock

Home > products > Multihead Weigher Packing Machine >

SUS304 Multihead Weigher Packing Machine With 2.5L Hoppers

SUS304 Multihead Weigher Packing Machine

2.5L Hoppers Multihead Weigher Packing Machine

PLC Multihead Weigher Packing Machine

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE, ISO

Model Number:

TY-ZHY102P16-01-11

Request A Quote

SUS304 Multihead Weigher Packing Machine With 2.5L Hoppers

Product Details

Control System:

PLC

Power Supply:

AC220V ±10% @50Hz/60Hz, 1.5KW

Weighing Range:

20-1000g

Min. Scale Interval:

0.1g

Hopper Volume:

1600ml/ 2500ml

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

wood crates

Delivery Time

15-30 days

Payment Terms

L/C, T/T

Supply Ability

45 sets per month

Stainless Steel Industrial Use Multihead Weigher Combination Weighing Machine M14L1.6

Get Best Price

Popcorn packaging and weighting machine

Get Best Price

video

14 Head Multihead Weigher Pet Packing Machine Fish Puppy Dog Cat Food Weighing Plant 120g 240g 400g 1kg Ziplock Packing Machine

Get Best Price

video

Wet Pet Food And Dry Pet Food Multihead Weigher Packing Machine Dog Cat Food Weighing 120g 240g 400g 1kg Pouch Packing Machine

Get Best Price

Contact Now

Product Description

10 heads dimple SUS304 multihead weigher with 1.6L 2.5L weigh hoppers

Specifications

Model	TY-ZHY10P25-01-11/ TY-ZHY10P16-01-11
Weighing range	20-1000g
Accuracy	x (0.5)
Min. scale interval	0.1g
Max. weighing speed	60 p/M
Volume of weighing hopper	1.6 L/ 2.5L
Control system	PLC or MCU
HMI	10'' touch screen
Power supply	AC220V ±10% @50Hz/60Hz, 1.5KW
Packing dimension (LWH)	1140 x 1140 x 1853mm
Gross weight	385kgs

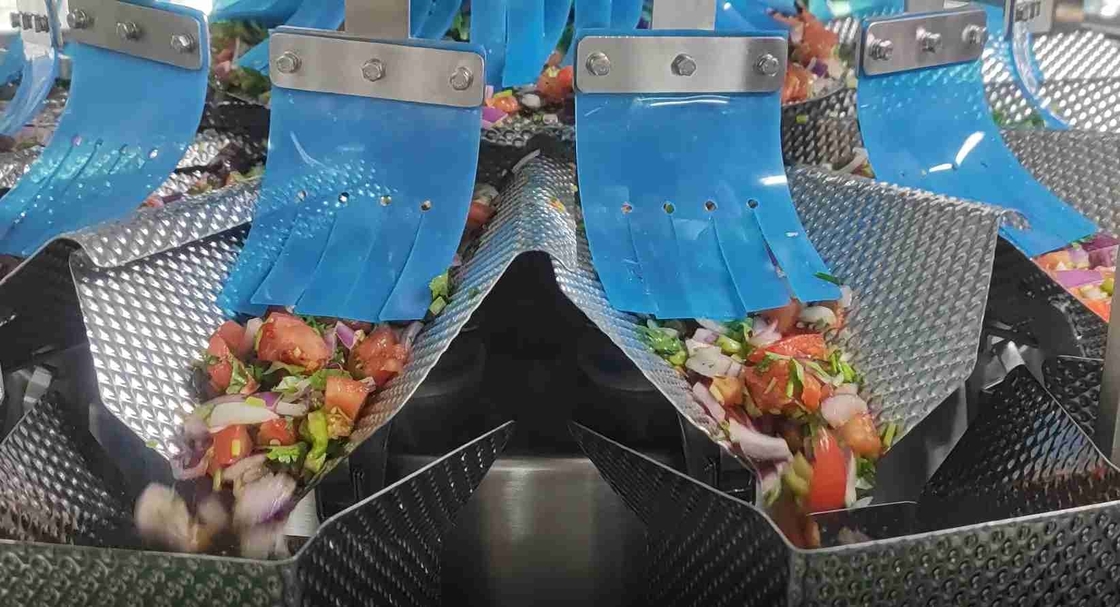

SUS304 Multihead Weigher Packing Machine With 2.5L Hoppers 0

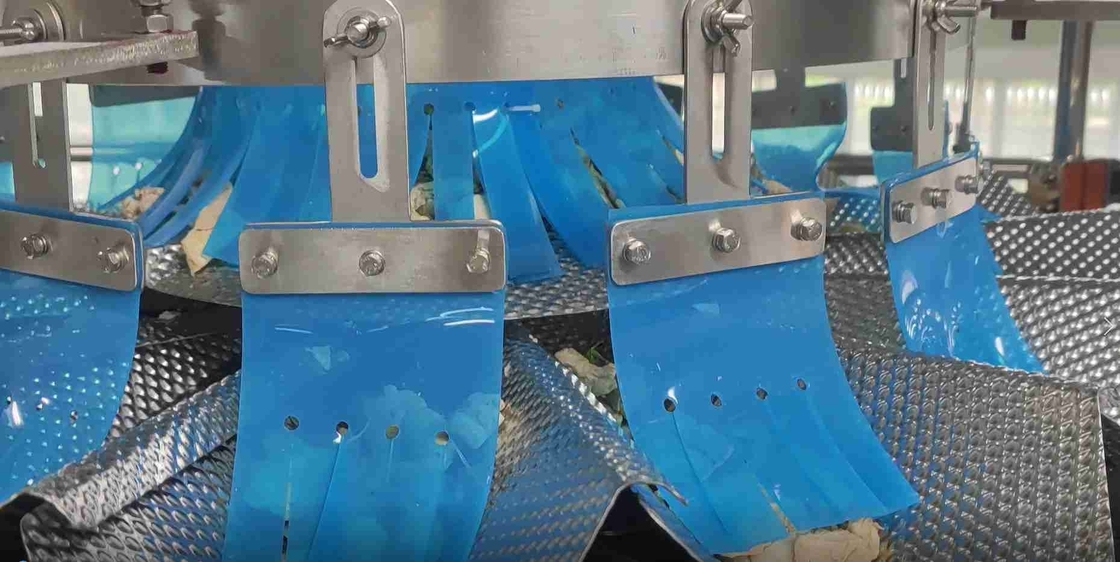

SUS304 Multihead Weigher Packing Machine With 2.5L Hoppers 1

Features:

1. high precision and lower weight tolerance

2. modular design for easy installation and maintenance

3. food-grade stainless steel

4. waterproof (IP65)

5. reliable main structure

Quick questions:

1. What certifications do your machines have?

Generally, our machines are CE certified, and we aim to follow best-in-class manufacturing processes across the board.

2. How does a Multi-Head Weigher work?

A multi-head weigher–also sometimes known as a combination weigher or multi-head scale–is a high-speed, high accuracy weighing machine which that is commonly used in the food industry as well as other packaging applications.

Each machine contains multiple weighing heads, each with its own load cell, which is used in combination. Based on the target weight, the software of the scale chooses which scale buckets (when added together) combine to reach the desired weight.

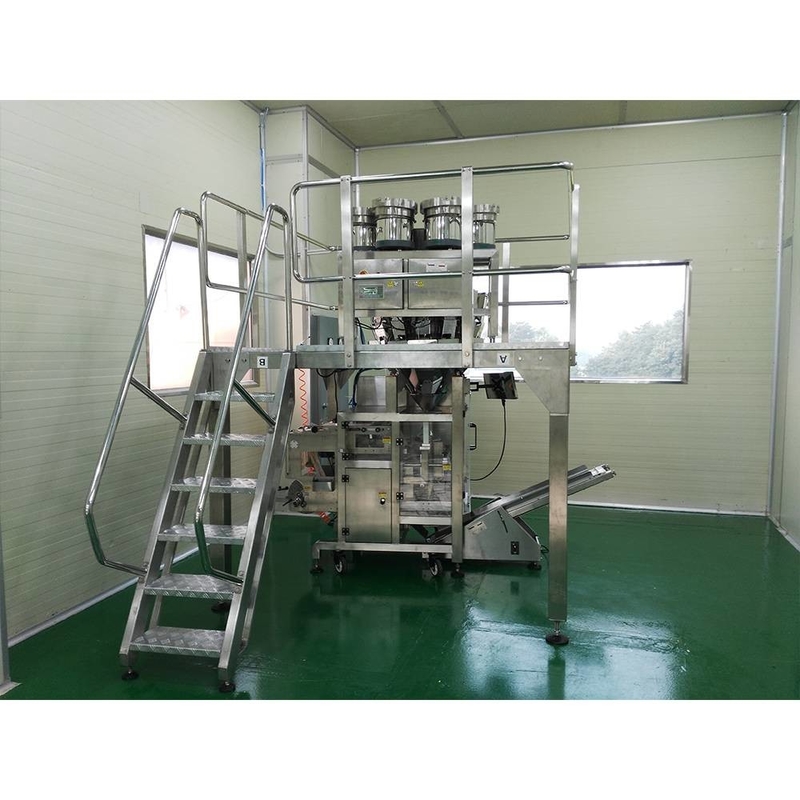

SUS304 Multihead Weigher Packing Machine With 2.5L Hoppers 2
