Automatic Filling Machine Packing Machinery 20 Head 24 Head Mixing Multihead Meigher Mackaging Machine
Mixed Material Packaging Machine Application
This system is suitable for a variety of mixed weighing products, such as nuts, dried fruit, candy, seeds, etc.

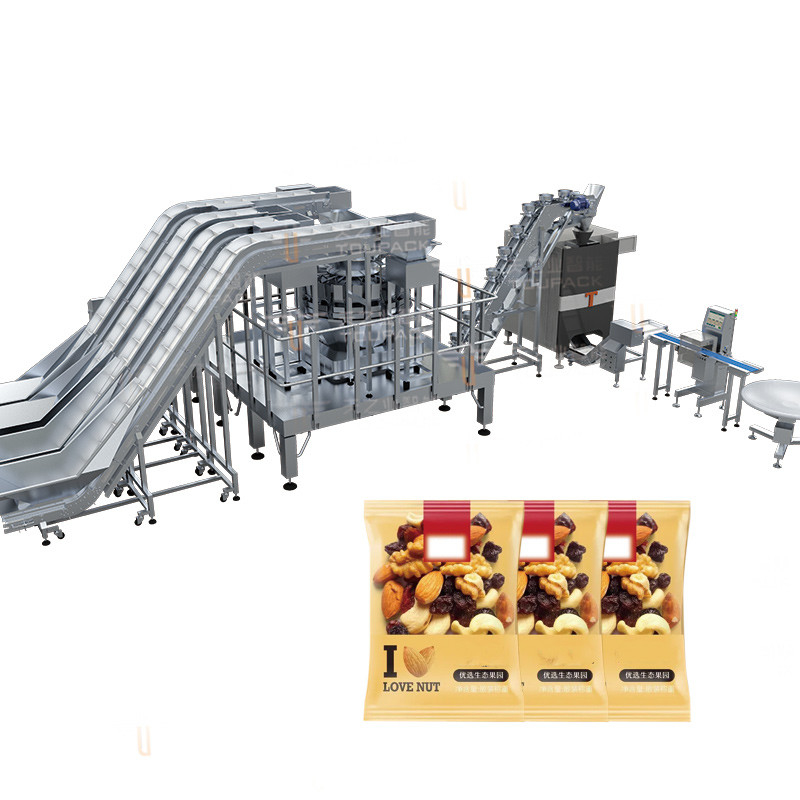

Mixed Material Packaging Machine Solution
Work Procedure
1. Manual discharge｜conveying materials
2.Inclind conveyor｜prevent clogging by sequential material drop
3.Multihead weigher｜uniform drop of material by vibration
4.Multihead weigher｜simultaneous weighing of multiple materials with high accuracy
5.Bowl-type elevator｜precise docking of the discharge port
6.Bowl-type｜precise docking of the discharge port to the packaging machine
7.Packaging machine｜heat seal forming,flat and strong seal
8.Check weigher｜prevent material overweight and lack of weight,reject unqualified products
Mixed Material Packaging Machine Specifications
|
Model
|
TY-ZHY202M(P)16-01-11;TY-ZHY202M(P)25-01-11
|
|
Max. Weighing (one hopper)
|
10-1500g
|
|
Accuracy
|
x (0.5)
|
|
Max. Scale Interval
|
0.1g
|
|
Max. Speed
|
130BPM
|
|
Hopper Volume
|
1.6L / 2.5L
|
|
Control System
|
MCU / PLC
|
|
HMI
|
7’’ /10’’ color touch screen
|
Features
1. Automatic compensation in mixing weighing mode.
2 Module electric board, and with intelligent multiple sampling stable mode, make weighing higher accurate.
3. Special load cell with high precision and high standard.
4. Intelligent fault alarm, convenience for maintenance.
5. High speed staggered discharging function, effectively prevent blocking materials.
