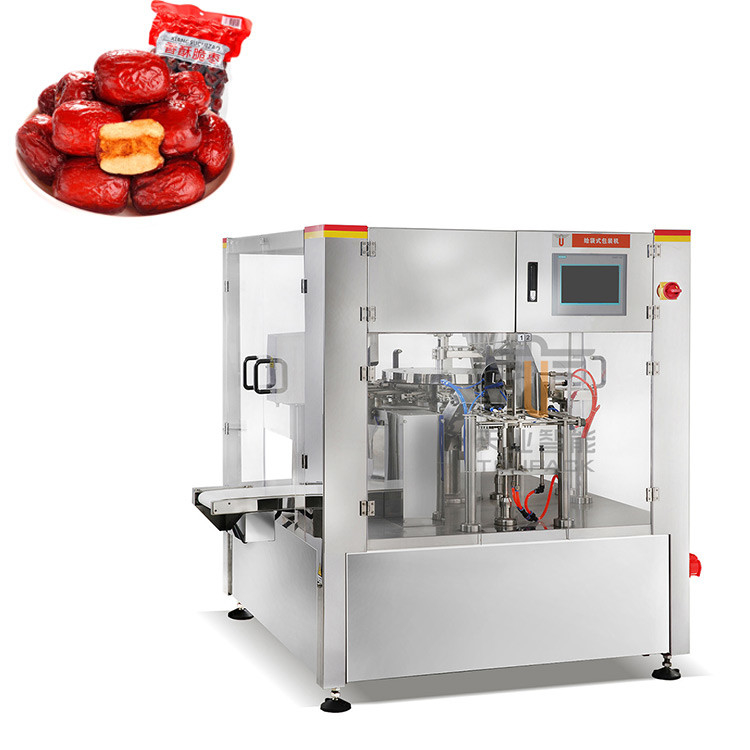

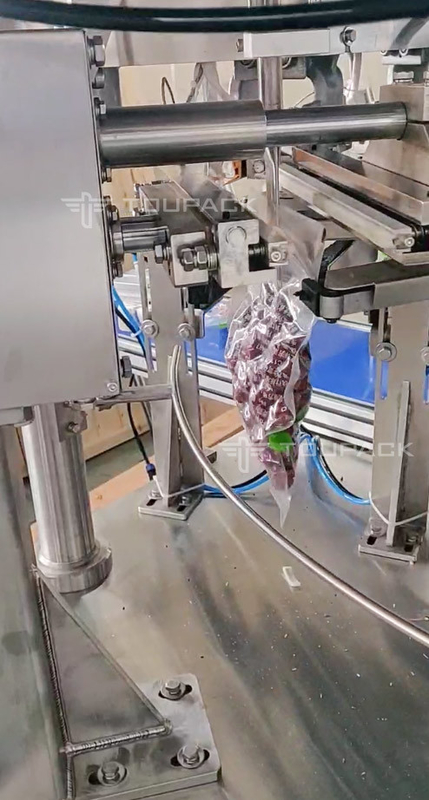

Automatic Rotary Doypack Premade Stand Up Pouch Bag Red Jujube Automatic Bag Filling And Sealing Machine
Application
It is suitable for weighing and packing grain,stick, slice,globose, irregular shape products such as candy,chocolate,jelly,pasta,melon seeds,roasted seeds,peanuts,pistachios,almonds,cashews,nuts, coffeebean,chips,raisins,plum, cereals and other leisure foods,pet food, puffed food, dehydrated vegetables,fruits,sea food,frozen food,vegetable, small hardware,etc.
Main Features
1.Full-automatic high speed stand up bag packing machine, efficent and simple to use.
2.Use famous brand electric and penumaticcomponents,stable and long life circle.
3.Use superior mechanical components,reduce the wear outless.
4.Apply advanced operating system ,easy to 7.He use and reprogramable. To be used on Shengwei High quality machine, it makes your packing work easy and efficiency.
5.It's suitable for premade pouch type: standup,resealable, performed, flat bottom, zipper pouch,3 side seal pouch, zip-lock pouch, top zip pouch,heat seal pouch, Kraft windowopen paper pouch,PE/Soft Pouch.
Specifications
|
Model
|
TY-8S
|
|
Bag Size
|
150-380(L)*100-200(W)mm
|
|
Bag Type
|
flat bags, aluminum foil bags, composite flat bag
|
|
Packaging Speed
|
20-55 BPM
|
|
Powder Supply
|
3 phase 380V AC±10% 50Hz
|
|
Use Power
|
2.0kW/unit
|
|
Air Consumption
|
5-8kg f/cm³, Air consumption:0.4m³/min
|
|
Operating Noise
|
Within 80db (within 1m)
|
|
Bag Opening Method
|
Vacuum bag opening
|
|
Output Function
|
Chute conveying
|
|
Alarm State
|
1.No bag or material,refuse to seal
2.Equipment overload alarm
3.Low air pressure alarm
|
| Product Name |
Rotary (Vacuum) Bag Packaging Machine |
Customization Solution:
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
