Place of Origin:
China
Brand Name:
TOUPACK
Certification:
CE,ISO9001
Model Number:
TY-ZHZ121M30-03-11

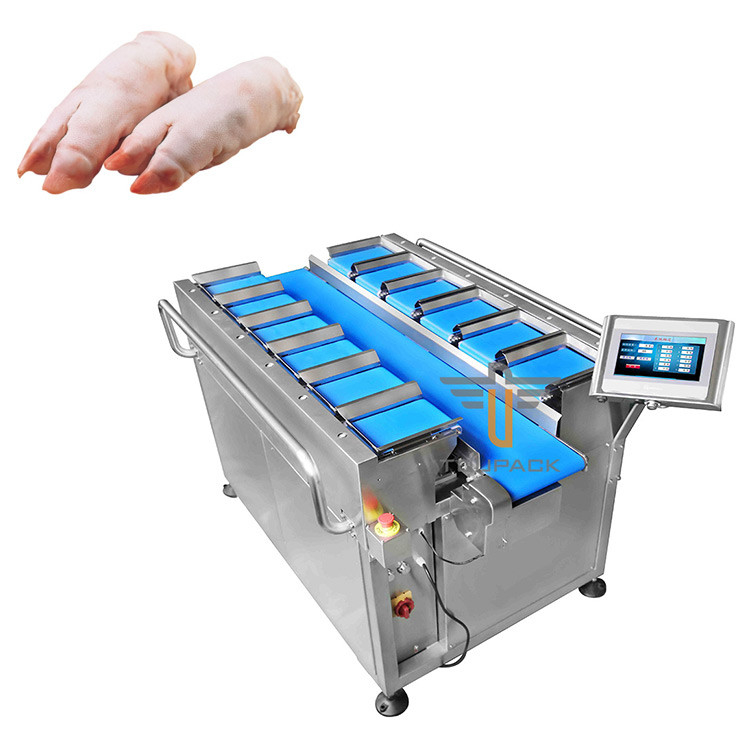

Automatic Belt Type Multihead Combination Weigher Check Weigher Machine For Pig'S Feet
Application
Automatic Multihead Combination Weigher is mainly applicable to chicken wings, chicken paws, chicken drumstick ,duck head,duck wings,meat and other poultry,sea cucumbers, abalone, fish filet , shrimp,shell, other bag package products etc.Products can be accurately weighed according to the preset quantity and weight and automatically delivered to the packaging station,which can ensure the quantity and weight of the packaged product ,which can meet the requirements and save manpower ,time and material cost.
Features
1.Replace the traditional artificial low efficiency of repeated counterweight;
2.Multiple workstations with counterweight quickly select the optimal combination;
3.Precise control of standard weight of quantitative packaging products;
4.2 seconds/time counterweight speed, fast counterweight combination.
Specifications
|
Model |
TY-ZHZ121M30-03-11 |
|
Max. Weighing (one hopper) |
100-2000g |
|
Accuracy |
x (0.5) |
|
Min. Scale Interval |
0.1g |
|
Max. Speed |
40 BPM |
|
Hopper Volume |
3L |
|
Control System |
MCU |
|
HMI |
10” color touch screen |
|
Power Supply |
AC220V / 110V ±10% 50HZ/60HZ, 2KW |
|
Packing Dimension |
2,300mm(L)*1,450mm(W)*1,100mm (H) 2,500mm(L)*1,200mm(W)*1,500mm (H) 2,500mm(L)*1,100mm(W)*800mm (H) |
|
Net Weight |
1185kg |
|
Package weight |
1100kg |
Customization Solution
According to your production line requirements, our experts will provide you with an integrated weighing and packaging solution to help you improve production efficiency.
