Name: Automatic Square Butter Pepper Filling System 10 Head Weigher Pepper Filling Machine
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TY-ZHY102M(P)16-01-11
Price: 18,500.00 USD
Availability: InStock

Home > products > Multihead Weigher Packing Machine >

Automatic Square Butter Pepper Filling System 10 Head Weigher Pepper Filling Machine

Square Pepper Filling Machine

Automatic Square Pepper Filling Machine

10 Head Weigher Pepper Filling Machine

Place of Origin:

China

Brand Name:

toupack

Certification:

CE,ISO9001

Model Number:

TY-ZHY102M(P)16-01-11

Request A Quote

Product Details

Hopper Surface:

Plain Plate Hopper

Weighing Bucket:

10 Buckets

After-sales Service Provided:

Online Support

Feeding Type:

Vibration Bowl

Certification:

CE/ROHS

Material:

Stainless Steel 304/316

Payment & Shipping Terms

Minimum Order Quantity

1 set

Packaging Details

Wooden case

Delivery Time

According to the actual situation

Payment Terms

L/C, T/T

Supply Ability

30 sets/month

Stainless Steel Industrial Use Multihead Weigher Combination Weighing Machine M14L1.6

Get Best Price

Popcorn packaging and weighting machine

Get Best Price

video

14 Head Multihead Weigher Pet Packing Machine Fish Puppy Dog Cat Food Weighing Plant 120g 240g 400g 1kg Ziplock Packing Machine

Get Best Price

video

Wet Pet Food And Dry Pet Food Multihead Weigher Packing Machine Dog Cat Food Weighing 120g 240g 400g 1kg Pouch Packing Machine

Get Best Price

Contact Now

Product Description

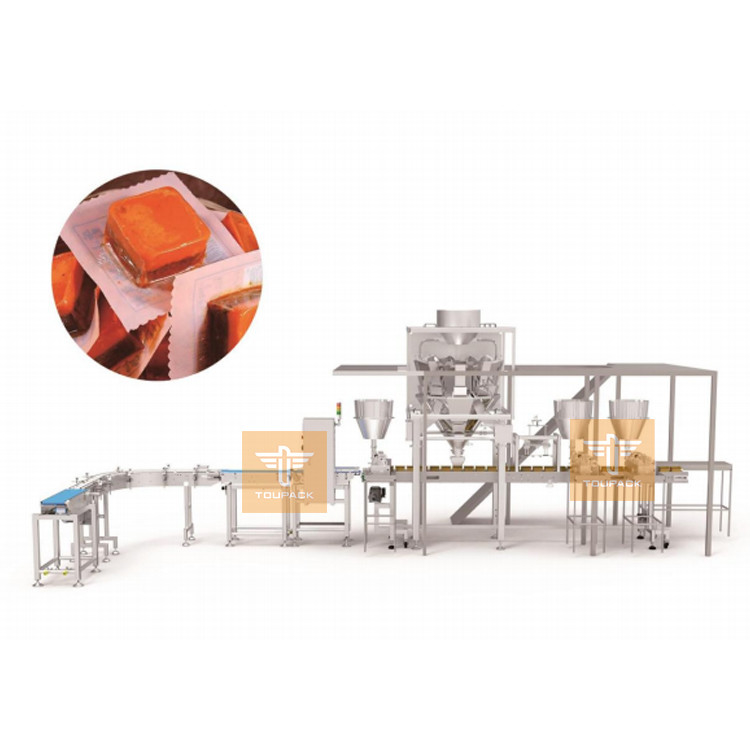

Automatic Square Butter Pepper Filling System 10 Head Weigher Pepper Filling Machine

Automatic Square Butter Pepper Filling System 10 Head Weigher Pepper Filling Machine 0

Solution units

①10 head 1.6L weigher

② Supporting platform

③ Filling conveyor

④ Filling sauce

⑤ Filling oil pump

⑥ Check weigher

Automatic Square Butter Pepper Filling System 10 Head Weigher Pepper Filling Machine 1

System parameters

System name	Square butter pepper filling system
Weighing products	Pepper
Target weight	10g
System speed	20-25 bags/min

Proposal flow chart

01——Workers put the box in the station by filling conveyor, the conveyor rotates one station distance at a time, the box reaches the filling sauce station, detects the signal, and the filling sauce pump grouts.

02——The box is transferred to the next station, and the peppers are dropped under the multihead weigher (at the same time. one worker adds the peppers to the upper hopper of the weigher, and the weigher is working as per the preset target weight or quantity.)

03——After filing the pepper, the box will be sent to the filling oil station, and connect the signal of filling oil pump, filling the oil.

04——Product will go into the check weigher for weight checking.

Automatic Square Butter Pepper Filling System 10 Head Weigher Pepper Filling Machine 2
