Automatic Weighing and counting VFFS Hardware Quantitative Weigher Packing Machine
Main Function & Features:
1. Advanced design, reasonable structure, convenient operation and maintenance.
2. Precise positioning with servo film running system and synchronous belts to pull film, ensuring stability and reliability.
3. Automatic correcting function; time and film saving to improve the reliability and intelligence of the whole machine.
4. Multiple automatic alarm and protection functions to minimize the loss
5. Full packaging process of measuring, feeding, filling, bag forming and date printing, air in/out, counting and finished product conveying in one automatic operation by the machine equipped with measurement device.
6. Bag type: pillow bag, gusset bag and hole punching bag.
Applications:
Application of weigher packaging machine

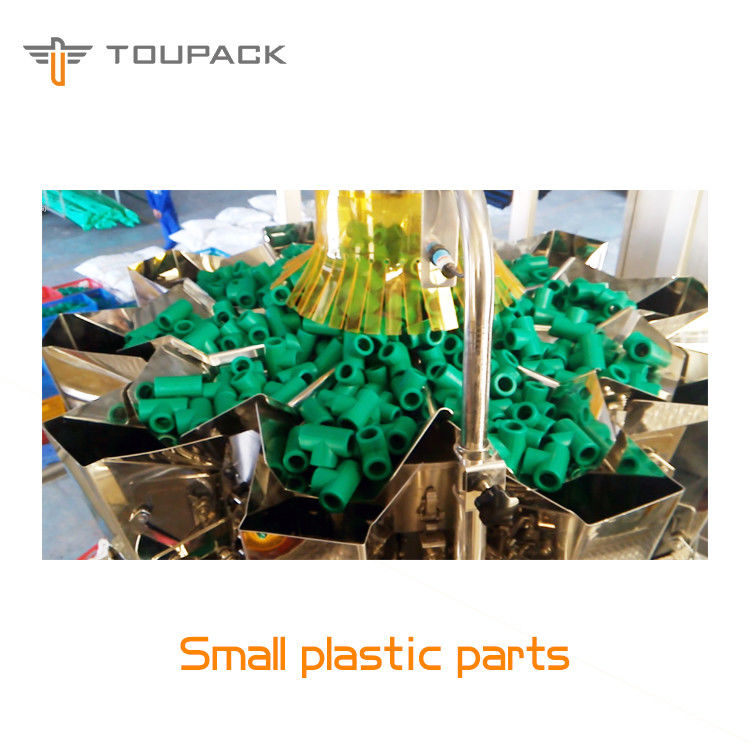

Weigher packaging machine is suitable for weighing material of grain, stick, slice , globose, irregular shape, such as candy , chocolate, jelly, melon seeds, peanuts, pistachios , almonds, walnuts, cashews, nuts, chips and such leisure foods , preserves( raisins, plum, etc), frozen food (frozen dumplings, etc), meatballs, fruit, vegetables, salads, cereals , shrimp, pet food, puffed food , hardware, plastic and so on .

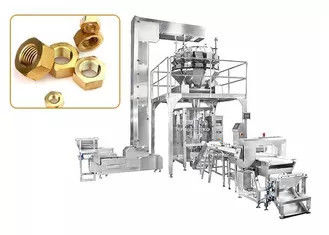

System accessories of weigher packaging machine:

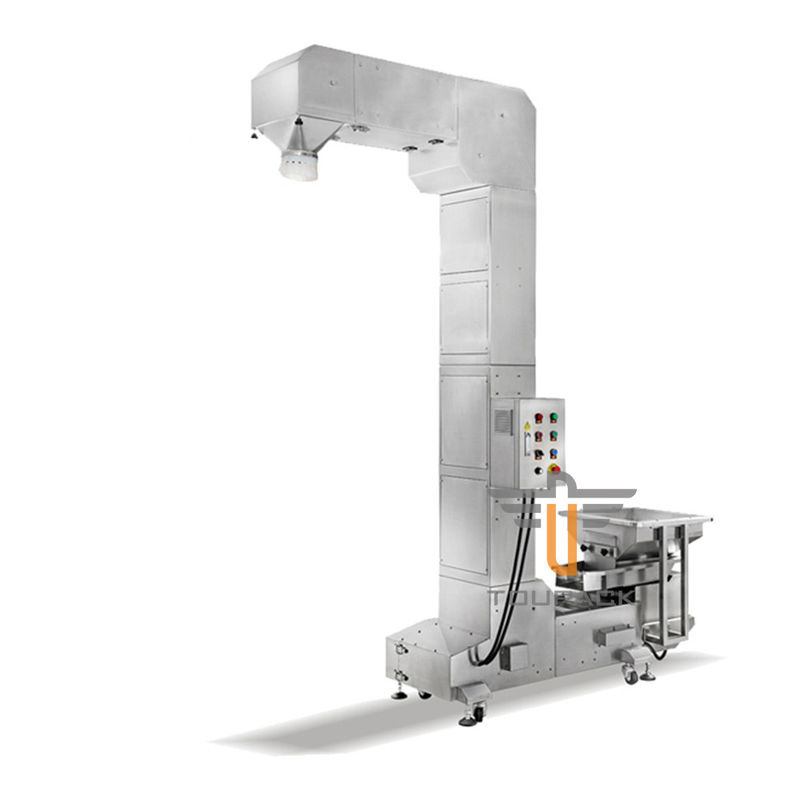

1.Z type conveyor

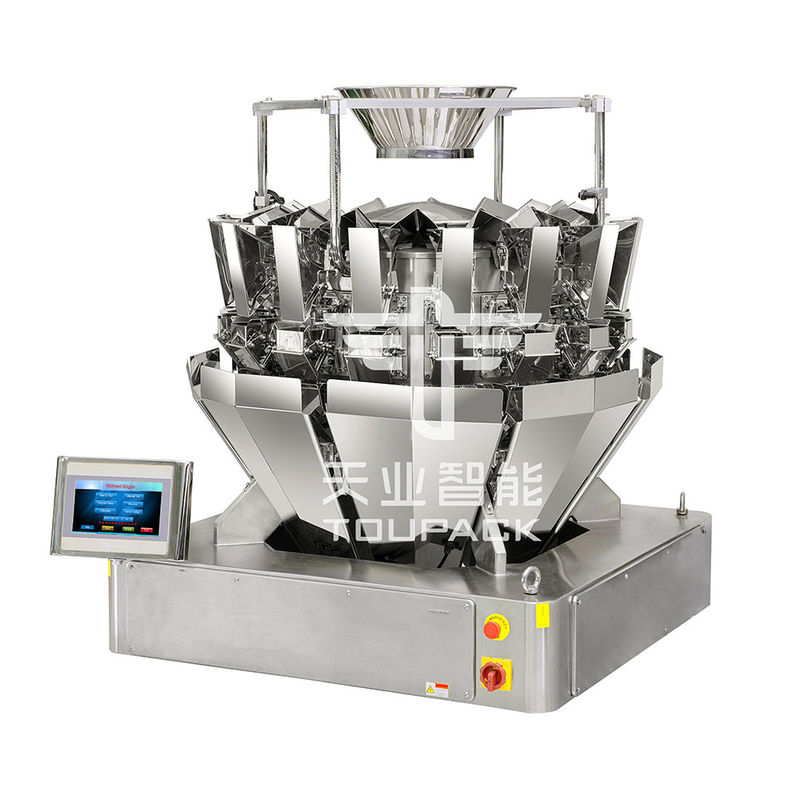

2.10 head multi-weigher
3.Platform
4.Vertical packaging machine
5.Product conveyor
Specifications:
| Model |
520 VFFS |
620 VFFS |
720 VFFS |
| Packing Speed |
10-60 bpm |
10-50 bpm |
10-50 bpm |
| Bag Size |
50-350(L)*50-250(W)mm |
20-400(L)*100-300(W)mm |
20-450(L)*140-350(W)mm |
| Bag Type |
pillow bag, gusset bag, hole punching bag |
pillow bag, gusset bag, hole punching bag |
pillow bag, gusset bag, hole punching bag |
| Film Width |
120-520mm |
620mm |
720mm |
| Film Thickness |
0.04-0.09mm |
0.04-0.09mm |
0.06-0.12mm |
| Film Material |
BOPP/CPP,BOPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/PE |
| Pulling Belt Type |
synchronous belt film pulling |
synchronous servo motor belt film pulling |
synchronous servo motor belt film pulling |
| Air Consumption |
0.8Mps 0.4m3/min |
0.8Mps 0.6m3/min |
200L/min 0.7×105Pa |
| Power Supply |
single phase 220V 50HZ/60HZ, 3.4KW / 4.2KW |
single phase 220V 50HZ/60HZ, 4.0KW |
single phase 220V 50/60HZ, 4.5KW |
| Machine Dimension |
1,560(L)*1,160(W)*1,530(H)mm |
1,250(L)*1,600(W)*1,700(H)mm |
1,360(L)*1,630(W)*1,900(H)mm |
| Machine Weight |
480kg |
800kg |
900kg |
