Name: SUS 304 X Ray Detecting Machine For Metal Or Non Metal Foreign Material Contamination
Brand: GUANGDONG TOUPACK INTELLIGENT EQUIPMENT CO., LTD
SKU: TTR--4017K100S
Price: 18,500.00 USD
Availability: InStock

Home > Products > X Ray Metal Detector >

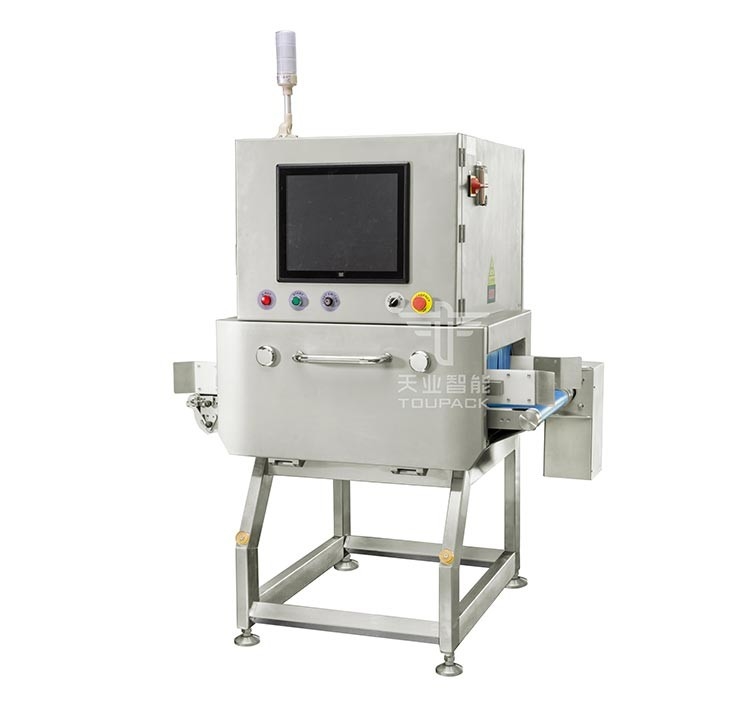

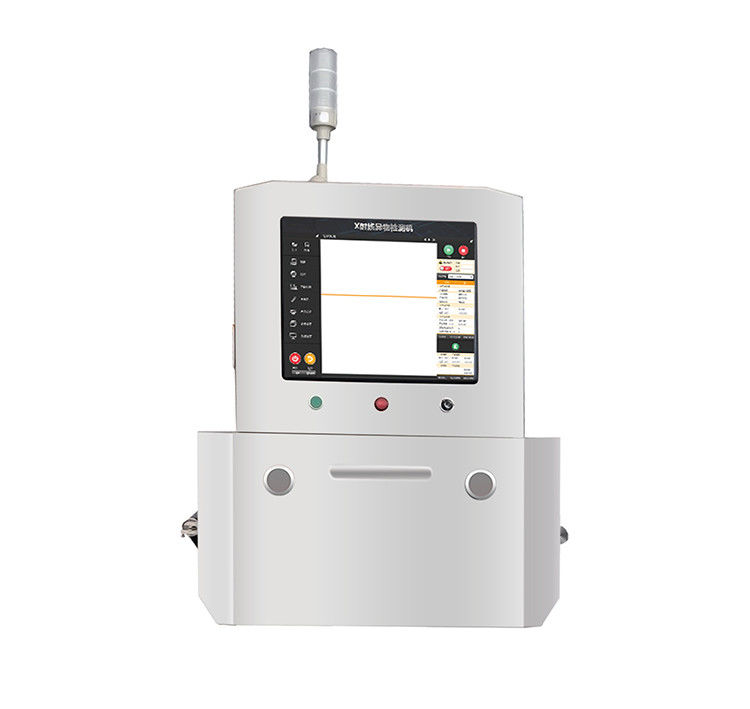

SUS 304 X Ray Detecting Machine For Metal Or Non Metal Foreign Material Contamination

SUS 304 X Ray Detecting Machine

High Sensitivity X Ray Detecting Machine

100KV X Ray Metal Detector

Place of Origin:

China

Brand Name:

TOUPACK

Certification:

CE, ISO

Model Number:

TTR--4017K100S

Request A Quote

Product Details

Model:

TTR--4017K100S

X-ray Light Source:

210W, 100KV

Max. Detecting Width:

400mm

Max. Detecting Height:

170mm

Non-load Accuracy:

SUS Ball φ0.3mm, SUS Wire φ0.2*2mm, Ceramics φ0.1mm, Glass φ1.0mm

X-ray Leakage:

1 μSv/hour

Power Supply:

AC 220V±10%, 50Hz/60Hz

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

negotiable

Packaging Details

wood crates

Delivery Time

40-50 days

Payment Terms

L/C, T/T, Western Union

Supply Ability

40 sets per month

SUS 304 X Ray Detecting Machine For Metal Or Non Metal Foreign Material Contamination

Get Best Price

video

150W Metal Detector X Ray Machine

Get Best Price

High Stability SUS304 300mm Width X Ray Metal Detector In Food Industry

Get Best Price

TOUPACK 3Ton/H X Ray Metal Detector Waterproof For Powdered Products

Get Best Price

Contact Now

Product Description

SUS 304 X Ray Detecting Machine For Metal Or Non Metal Foreign Material Contamination

Product Specifications

Attribute	Value
Model	TTR--4017K100S
X-ray Light Source	210W, 100KV
Max. Detecting Width	400mm
Max. Detecting Height	170mm
Non-load Accuracy	SUS ball φ0.3mm, SUS wire φ0.2*2mm, ceramics φ0.1mm, glass φ1.0mm
X-ray Leakage	1 μSv/hour
Power Supply	AC 220V±10%, 50Hz/60Hz

High Sensitivity X-Ray Detecting Machine

This high-performance X-ray inspection system is designed for detecting both metal and non-metal foreign material contamination in products.

X-ray Food Inspection Capabilities

The system can monitor product integrity by checking fill levels, measuring mass, counting components, or identifying damaged products and packaging. X-ray inspection is entirely safe and doesn't harm food products. Modern equipment operates at significantly lower wattage than previous generations while maintaining high efficiency.

Detection Performance

Metal contaminants
Non-ferrous metals in foil, including stainless steel
Glass particles
Bone (alcified)
PVC plastic
TFE (Teflon) plastic
Ceramic or concrete
Flavor/sugar clumps
Product completeness verification

TTR--4017K100S Technical Specifications

Material of main structure	SUS 304
X-ray Light Source	210W, 100KV
Max. Detecting Width	400mm
Max. Detecting Height	170mm
Non-load Accuracy	SUS ball φ0.3mm, SUS wire φ0.2*2mm, ceramics φ0.1mm, glass φ1.0mm
Transfer Speed	10-70 m/min
HMI	17'' full-color LCD touch screen
X-ray Leakage	1 μSv/hour
Production Method	Lead-free protective curtain, SUS 304 protective board
Rejector	32 stations blow rejector, single/ four-channel flap rejector
Power Supply	AC 220V±10%, 50Hz/60Hz
Air source	0.6-0.8MPa
IP Rating	IP66
Working Environment	Temperature: 0-40℃ (Cooling method: Air conditioned cooling) Humidity: 30%-90%, No dewing (Humidity controlling: Anti-humidity device)
